Need EXPERT opinion on 98 1.6 16V Engine issue.....
I have posted about this before but I have finally got all my ducks in a rown w/ plenty of pictures so I thought I would try one more time.
WANTED: Suzuki Samurais in any condition within a 100 mile radius of Hurricane, WV 25526 --- Maybe a little farther depending on what you have ;)

  • GeorgeD
  • [*][*][*]
Re: Need EXPERT opinion on 98 1.6 16V Engine issue.....
Reply #1

I have a 98 Chevy Tracker 1.6 16V automatic 4 door. I received it from an estate, my friend was in charge of the estate & he also owns his own transmission shop for the past 40 years. When the previous owner bought this Tracker it had been flat towed improperly & had ruined the transmission, it would only go forward. My friend saw it & drove it when it was brought to his shop, he said it ran perfectly but trans was junk. The owner took Tracker home pulled trans. & brought it back to be rebuilt. When disassembled it was determined that it was beyond rebuilding. The owner bought a wrecked 96 for the trans. (I got the wrecked one in the deal as well). He took that trans to my friend’s transmission shop & he went through it since it was out. The owner took it home & installed it & a couple days later was killed in an automobile accident.

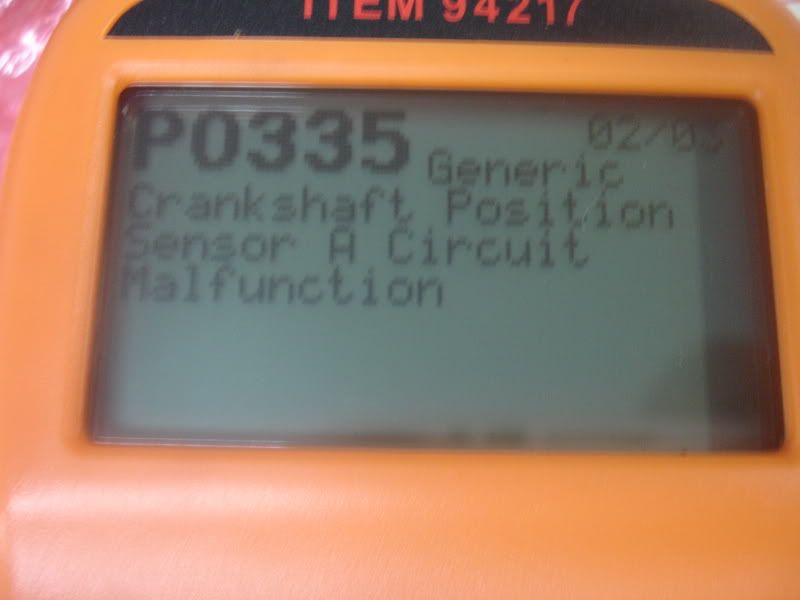

I brought it home, had to winch it up on my trailer because it wouldn’t start. I have tried everything I can think of & have talked to ever body I can think of & can’t figure out what it wrong. I scanned it & came back w/ code PO335 which was Crankshaft Position Sensor A Circuit Malfunction.



After talking to several people & tracking down wires I came to find that it did not have a crankshaft position sensor.

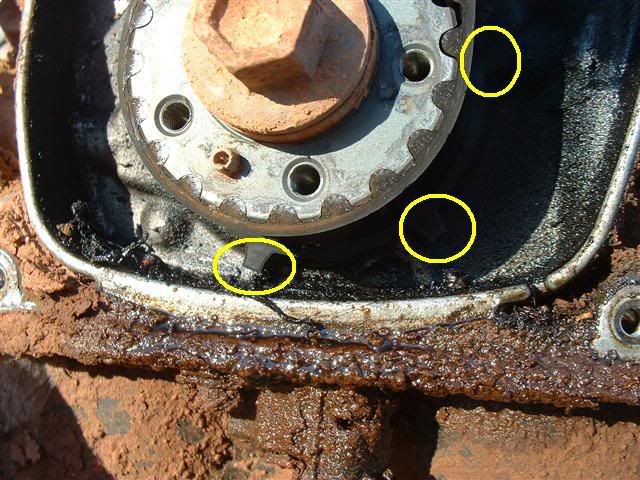

I removed the front timing cover & there was no sprocket (for lack of a better name for it, see pics) for the crankshaft position sensor to read from behind the lower timing belt pulley.


MINE


Picture of what it should look like (Thanks Ranger Scott)

It also didn’t have a hole in the oil pan rim for the sensor to go through.



It does appear to have the correct distributor in it.



I guess what baffles me the most is that it ran before but now won’t even hit. It is getting plenty of gas but no fire.

My only guess on fixing it is to either buy a new motor for it or if possible get the parts needed & upgrade this motor. My question to someone who has worked on a lot of these motors is….. Can I get one of the sprockets that fit behind the lower timing belt pulley, oil pump (if needed), crankshaft position sensor & oil pan (or adapt my oil pan) & put them on this motor & then I could plug in the crankshaft position sensor wire & pray that it starts up & runs? Also is there a difference in the cranks if this is a pre-96 motor (if that is what I have)? I ask this because I don’t know that there would be enough room to put the sprocket on the older motor. If there’s not enough room I wouldn’t be able to get the lower timing belt pulley back on or possibly would be out of alignment enough to throw the timing belt off? Also if there is room could I take the crankshaft bolt out, remove the timing belt pulley & install the sprocket, pulley & bolt back w/o pulling the motor or damaging anything?

If I can fix it by adding the sprocket, oil pump, sensor & oil pan modification does anybody know the best place to get the parts. I see Parts Dinosaur has a good price on the oil pump but I didn't see any of the other parts I would need.

Thanks,
George D in WV
