Well, I've finally gotten some time to start this thread going. I am swapping out my suzuki axles for toyota axles, rebuilding them and reinofrcing them as well. I am also going with rear disk brakes, toyoa high steer with an FJ80 steering box. I'll be adding a rear traction bar as well and running toyota drive lines with rock rat adapters.

Started with the rear axle. Here's all the parts that will go into the rear axle

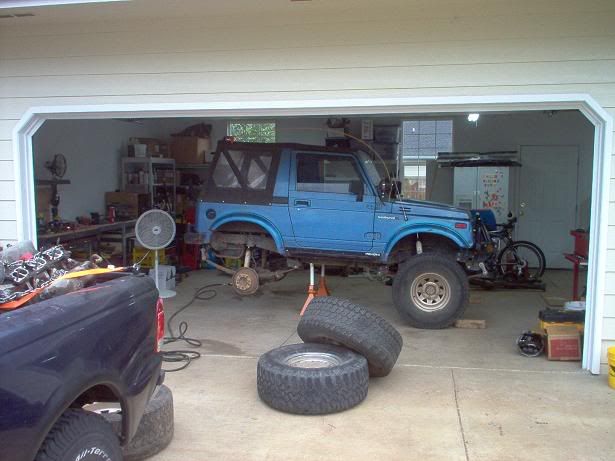

Got the tires pull off the suzuki axle

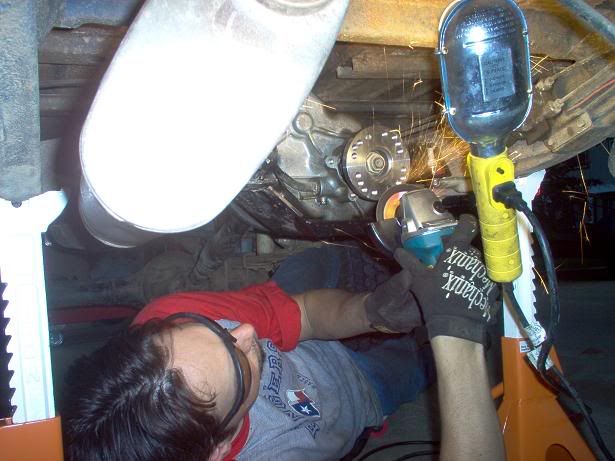

Couple of ubolts didn't want to come off so I helped them along

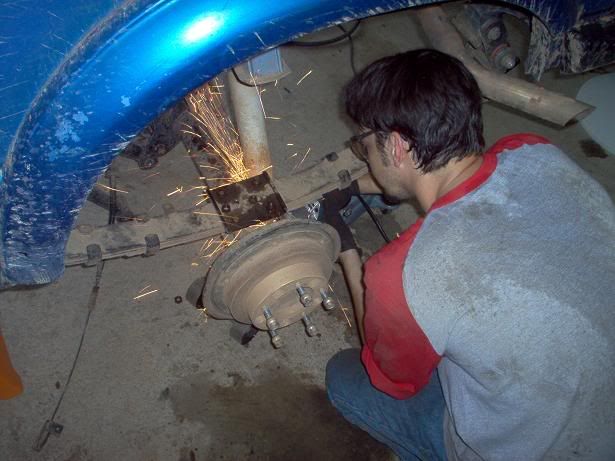

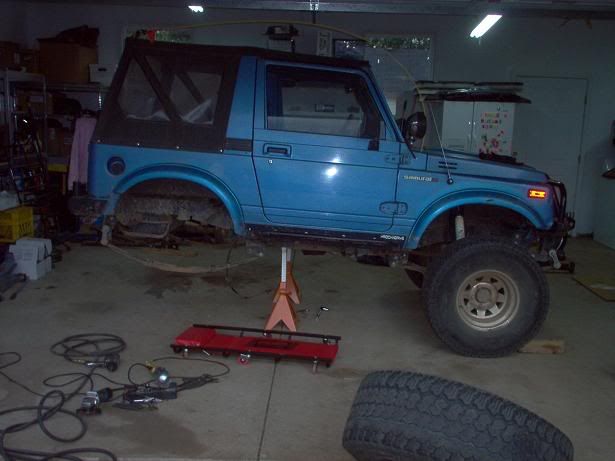

Got the rear axle off


Here's what all I removed off the rear

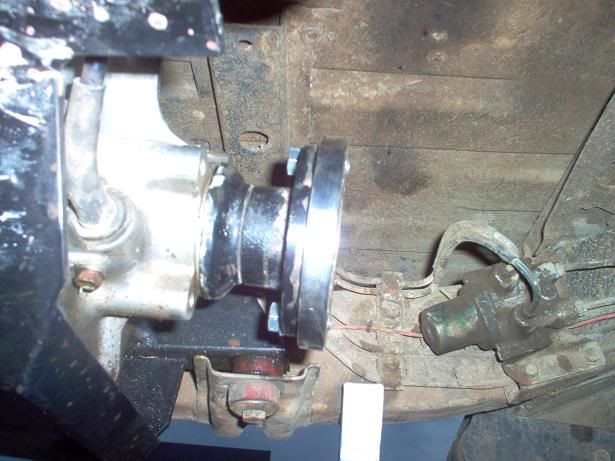

Here's the drive line I will use for the rear axle. It's a front CV drive line from a first gen toyota pickup. As well as the rockrat adapter.


The hardware I received with my adapters was a bit long. Not sure if that is the norm or if I got the wrong hardware. Not a big deal though. I'll just cut the ends of the bolts off.

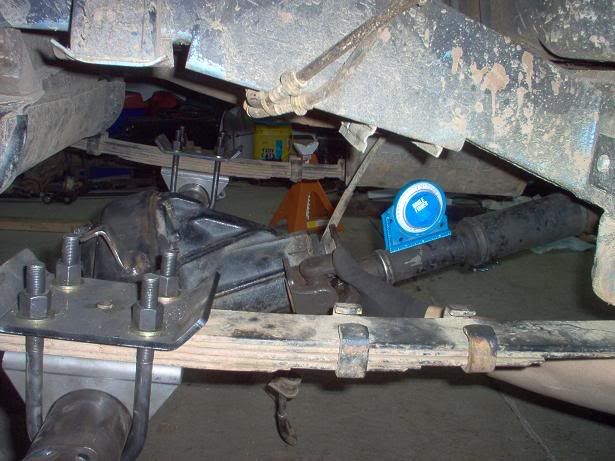

Here we are setting the drive line angle with teh angle finder. Since it's a CV shaft the pinion will point at the tcase.


Perches are tacked in place

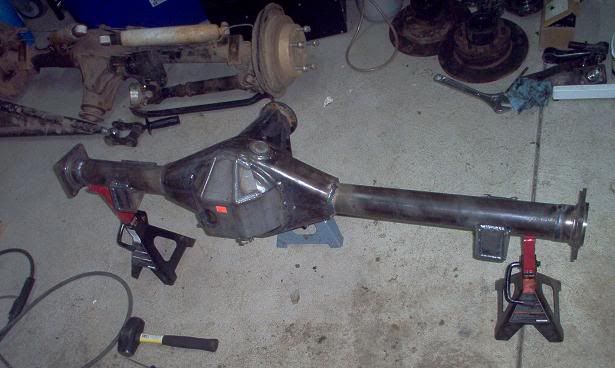

Rear axle is welded up and ready to paint.


I figured I might as well rebuild the axles while I had it all apart. Got the rear bearings pressed out


Here's teh rear axle painted and the shafts with new bearings

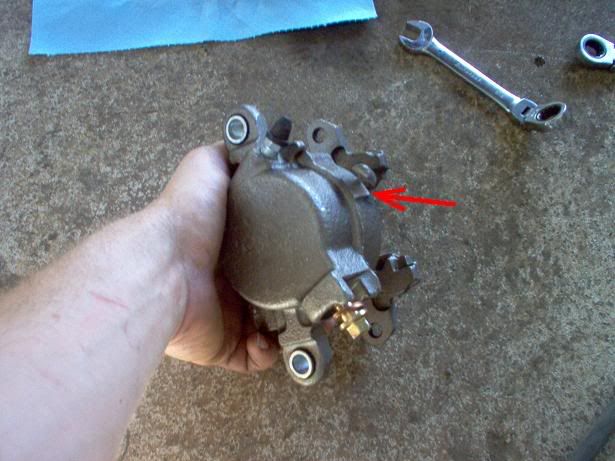

I am running monte carlo calipers in the rear. There's a small tab that needs to be ground off on about 50% of the calipers. Its no big deal


Here's the painted axle with the brake lines present

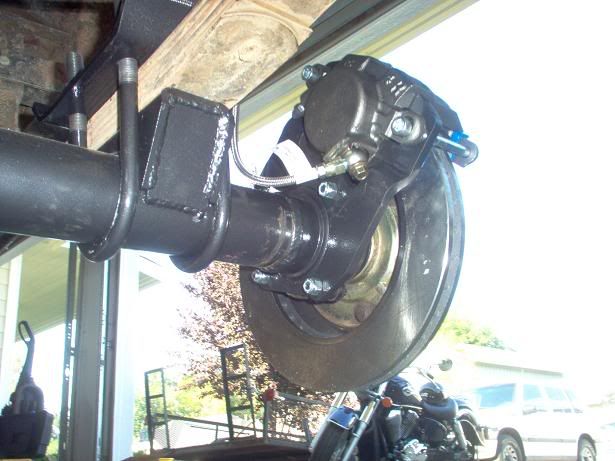

Here's the rear disk brakes




Here it is all together and mounted


With the tires mounted. These are 33x14x15 boggers

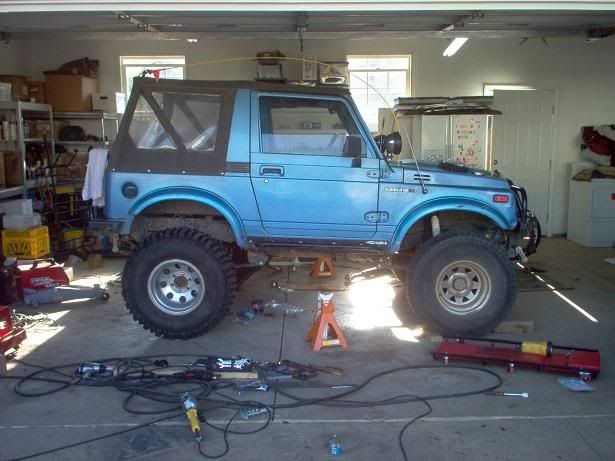

Not sticking out too much futher than I was when I was running suzuki axles with 1.5" spacers

Offline elotsip

  • Sr. Wheeler
  • ******
  • Location: Dallas, TX
  • Posts: 674
Now for the front.

Front axle removed along with steering arms


Sammy with no front axle


This is the third member I am running in the front. It has some rust on the teeth. I was wooried about it but I just cleaned them off as best I could.


Got the lock rite installed


Pulled out the sidekick power steering I was running


These are the brackets that my buddy designed for me. We had another guy burn them out. One plate will be welded to the exisiting toyota perch.


Like this


Toyota front axle with trail gear truss and sky spring perch


Here's teh axle with the lower custom plate


Lots of clearance for the dif to be installed and removed


Here it is with upper bracker attached as well.






I order the knuckle ball gussets from marlin crawler. These things are beefy and fit great!




trail gear diff cap


Custom bracket is spaced in slightly to fit the narrower sazuki spring location.


Here's the fron axle painted and mounted.





We called it quits at this point as it was well over 100° and we had worked Friday evening, all day sat and all morning sunday. Made some pretty good progress. Had to do a lot of running around on Sat to get misc parts that I missed and some toyota only parts as well. All and all not a bad weeked and a good start on the proect.

Future plans are a truss for the rear axle and a new rear traction bar. Still trying to figure out what PS setup to go with up front...
